Factory Interior 1200mm LED Light Fitting 48w CCT 2700 - 6500K Lifetime 30000 Hours
Moulding Type LED pri-proof fixture,,48w,PC body,milk cover,1.2M length
IP65 LED Water Proof Fixture
Application Places:
Parking lot,corrosive,tunnel,railway station,etc
FEATURE
a. tradition tinjection molding,no clips,beautiful design.
b. SMD2835 led chips,light uniformity,no dark space.
c. IP65,IK09,with back open box,easy to connection and install.
d. The whole lamp passes the test of protection grade and heat dissipation
e. Can match with emergency or sensor function
Body
1. Injection type
2. Opaque UV stabilized PC body
3. PC or ABS material body with high impact resistance,
4. white painted metal sheet reflector ensures optional recovery of the light output,0.45mm thick.
5. PC diffuser,shock-resistant,light uniformity,no dark space.
6. IP65,outstanding stability of water tight gasket,waterproof,explosion proof,dustproof.
7. size for choose:60/120/150 cm
Parameter
Input Voltage:180~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS48FA-120 | LampPower(W) | 48 | Input Voltage(V) | AC180-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 240 | Luminous Flux(lm) | 4800 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - 50 |

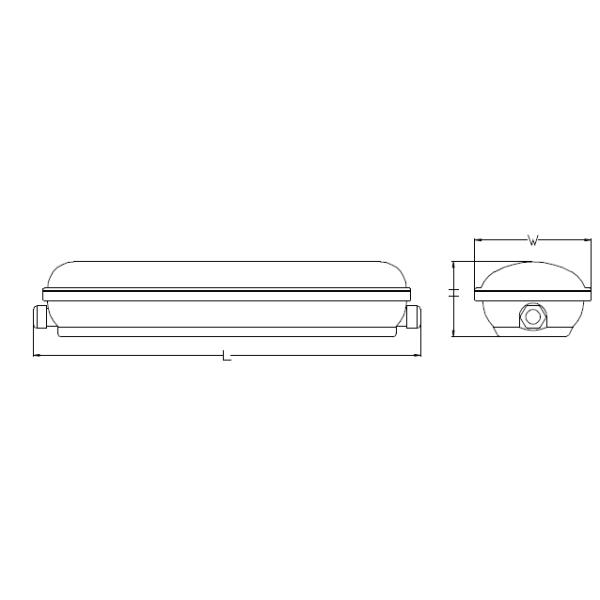

| Lamp length(mm) | 4FT-1200 | Package (pcs/ctn) | 6 | Meas(mm) | 1230*180*240 |
SURFACE
Installation
1. When can I get your reply?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost .But the sample cost can be refundable after order confirmation when your quantity of is more about the minimum order quantity.
3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-10 days.Then will be sent to you via express and arrive in 5 days. You can use your own express account or prepay us if you do not have an account.
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
